Marshall Art

The Marshall Art is a 22m survey vessel, carefully modified to offer a stable platform for hydrographic, geophysical, environmental and ROV campaigns.

Capable, Versatile Survey Vessel

The Marshall Art has been carefully converted from a pleasure craft to a unique survey vessel by Marshall Jakeman Marine Ltd.

The high-performance vessel offers a unique range of benefits and features which make her ideal for multi-discipline projects.

With a 2-Tonne A-Frame, spacious back deck and 4 double berth cabins for charterers, the Marshall Art benefits from dedicated survey sensor mounts and well-equipped workstations for survey crew.

Subscribe to Vessel Availability

"Marshall Jakeman Marine Ltd has continued to build on their proven track record, providing dynamic working vessels to suit an ever-evolving industry."

"Marshall Art is no exception, not only through the provision of a comfortable and open plan survey platform but also encompassing a first-class feel to the crew accommodation, which is essential to any work scope."

Nathan Hobday, MD, Red Lion Marine

Specifications

BuilderBarry Marshall
Year Built2010/2020
ClassMCA Category 2 - 60 miles from safe haven
Length (LOA)22.9m
Beam6.0m
Draught1.7m
Air Draught9m
Gross Tonnage57.4T
Cruising Speed9 knots
Survey Speed2 - 5 knots
Accommodation13 personnel overall, 8-9 for charterers

EnginesCaterpillar 3126TA 350HP
Generators1 x 27KVA & 1 x 21KVA 3 phase 415v
ThrustersFixed prop bow/stern thrusters

Crane2.5t/m - 370kg @ 5.2m, 720kg @ 3m
A-FrameSWL 2 Tonnes

Fuel6.4 m3
Fresh Water7500 litres

Survey Capabilities

Hydrographic, Geophysical & UXO Survey
Hydrographic, Geophysical & UXO Survey
ROV Survey and Inspection
ROV Survey and Inspection
Environmental and Benthic Sampling
Environmental and Benthic Sampling
Marine Mammal and Bird Observation
Marine Mammal and Bird Observation
Sister to the DSV Curtis Marshall
Sister to the DSV Curtis Marshall
2 Tonne A-Frame with Knuckleboom Crane
2 Tonne A-Frame with Knuckleboom Crane
Various Sensor Deployment Options
Various Sensor Deployment Options

Hydrographic, Geophysical & UXO Surveying

The Marshall Art offers a range of suitable deployment options for survey sensors.

The Marshall Art is fully equipped with a towing A-Frame, folding knuckle-boom crane and the option of accessible hull mounted or side mounted pole for survey instrumentation.

Inside the spacious wheelhouse a generous area is dedicated to online/offline operations. A fly bridge offers ready access to antenna fixtures without working at height complications.

  • M20 Deck fixings are pre-mounted at 1m intervals for deck equipment.
  • 3 station survey desks with 1 x 2 monitor stations and 2 x 1 monitor stations are inbuilt with remote control for A-frame and winch from survey desk.

Our team are open to options for towing arrays of magnetometers and have experience designing booms.

ROV Survey and Inspection

The 2-Tonne A -Frame and dedicated client survey station make the Marshall Art an ideal solution for inspection class ROV's.

The vessel benefits from pre-mounted M20 Deck fixings at 1m intervals for deck equipment. The standard sensor mount can be equipped with a USBL for subsea positioning.

Environmental Survey, Bird and Mammal Observation

The dedicated survey station, inbuilt monitors, 2 tonne A-Frame and joystick winch controls enable clients to perform grab sampling and camera drops comfortably.

A sea water wash down pump is provided for environmental samples.

Having an open spacious flybridge, the Marshall Art is ideal for a 360 degree view for bird and mammal observation.

Spacious Back Deck

The dedicated survey station, inbuilt monitors, 2 tonne A-Frame and joystick winch controls enable clients to perform grab sampling and camera drops comfortably.

  • A sea water wash down pump is provided for environmental samples.
  • Having an open spacious flybridge, the Marshall Art is ideal for a 360 degree view for bird and mammal observation.

Superior Accommodation

Accommodation of this standard is rarely seen on a survey vessel.

Fresh out of refit, the Marshall Art offers 4 Double Berth cabins available for the charterer, all finished to an exceptionally high standard. An open plan Galley and Mess area on the bridge offers a comfortable living area, and there are 4 showers and 4 toilets onboard the vessel in total.

The accommodation standard on the Marshall Art offers a first-class feel, which is highly unusual for a survey vessel or workboat.

Master's Cabin
Master's Cabin
Dual-Berth Cabin
Dual-Berth Cabin

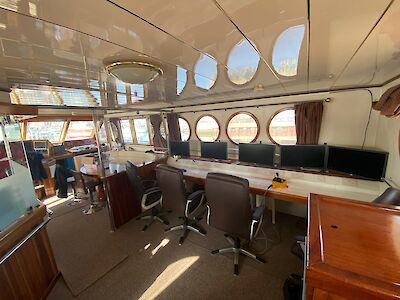

Workstations
Workstations

Vessel Drawings

Download the vessel specifications

To learn more about the Marshall Art, download the vessel specifications now.

Download

Marshall Art Brochure
